TECHNICAL SPECIFICATIONS

• Diameters: 80-120mm
• Connection: 35mm hole

Recommendations for use

Once set, the tools should not be removed from the ISO fitting. The rotation and feed speeds provided at the time of purchase are indicative, as they vary based on the type of material being worked and the profile to be achieved. Upon delivery, we will provide guidance on the most suitable parameters for these two variables and the correct increments for each position.

The following principle should be respected during processing: each successive wheel must remove the grooves left by the preceding wheel.

Typically, a complete set for granite processing consists of 7 wheels, including 4 diamond wheels and 3 polishing wheels.
For marble processing, the complete set includes 6 wheels, equally divided between diamond and polishing wheels.

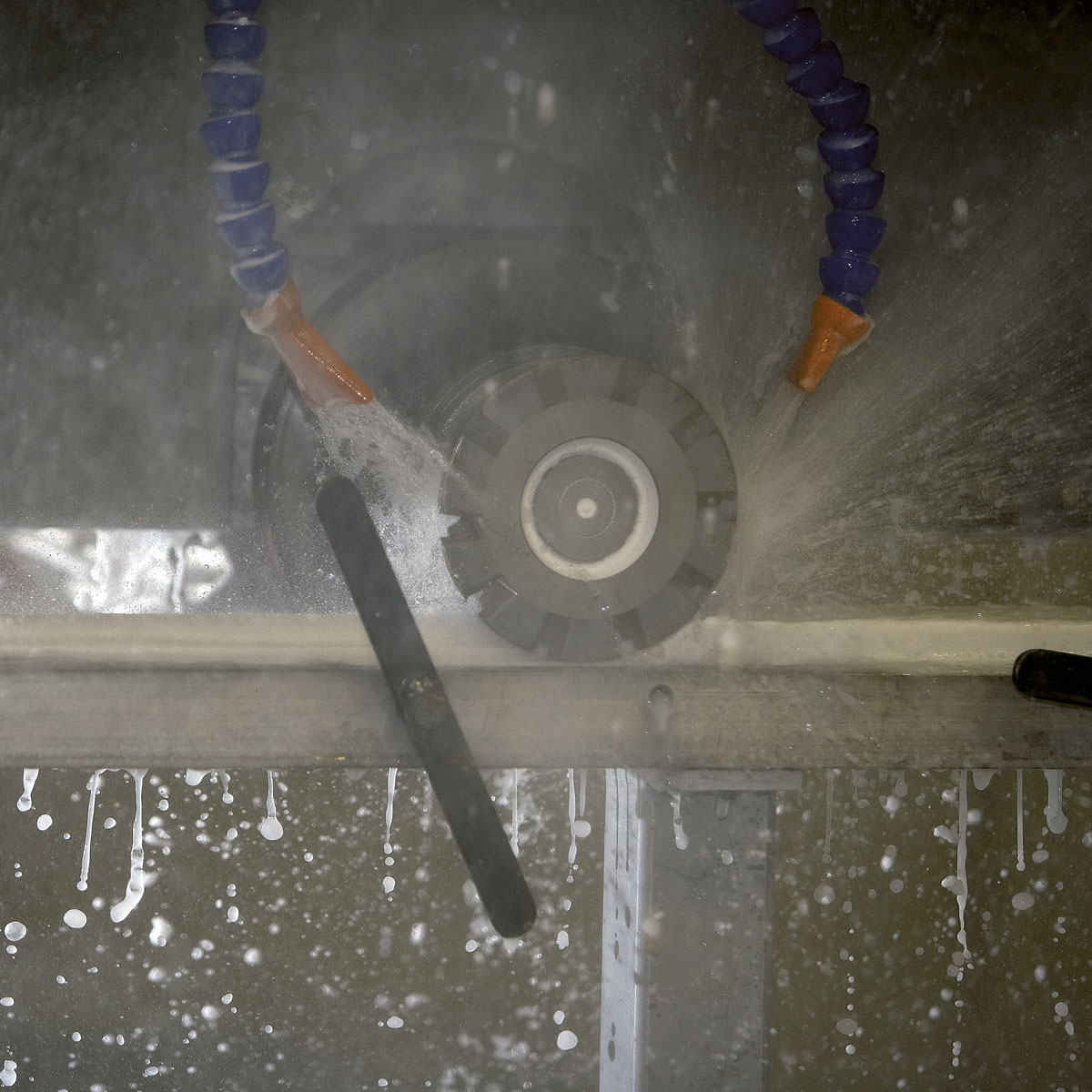

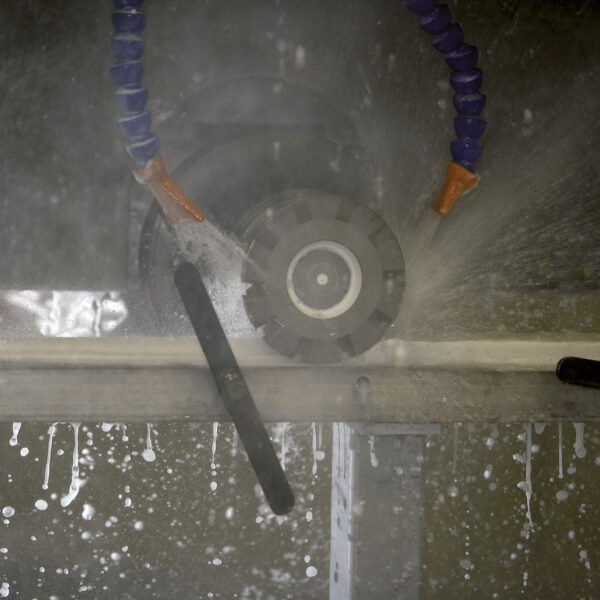

Ample internal lubrication is essential for the correct functioning of the tools.
